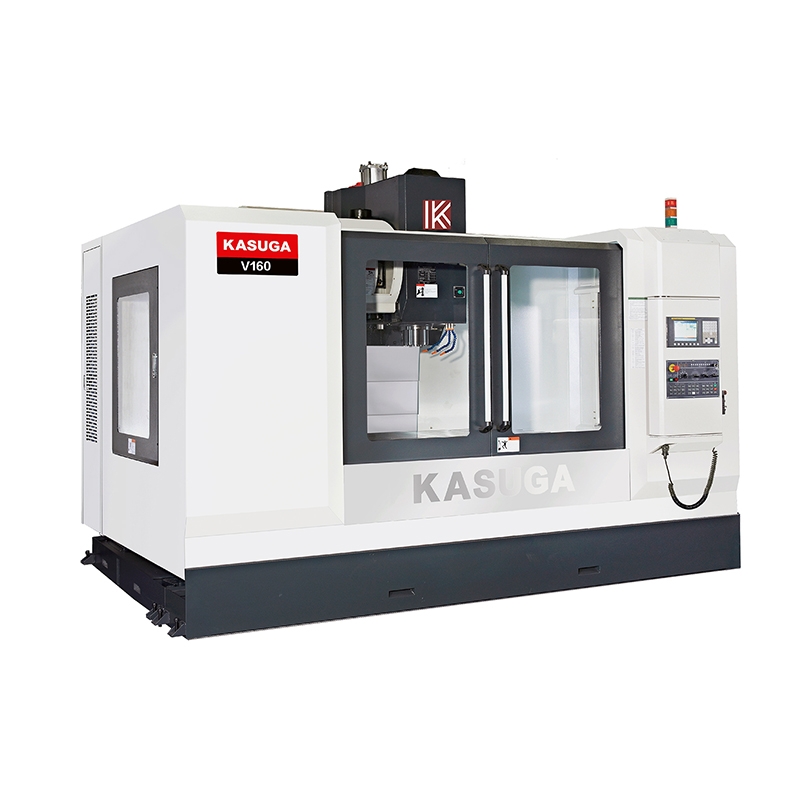

V160(D) / V200(D)

Inquiry
Product Name : V160(D) / V200(D)
Product Description

Description

  • Optimum Rigid Structure / High-speed / High-precision.
    The big span structure of Y axis wider junction between column and base provides the most stable.
  • High speed / High rigidity, and high load transmission system on three axes.
    Width of linear slideway used on KASUGA is 65/65-55/65 compared with that of other competitors by which ensures better rigidity and higher stability.
  • High speed A.T.C
    Tool change time up to 2.3 sec. and highly reliable automatic tool change mechanism cooperated with rapid traverse of three axes shorten the machining time enhancing the output.
ITEM / MODEL V160 V160D V200 V200D
X/Y/Z Axis travel 1650 / 850 / 820 mm 2050 / 850 / 820 mm
Spindle nose to table surface 165~985 mm 120~940 mm 165~985 mm 120~940 mm
Table height from floor 978 mm
Table size 1750 x 800 mm 2150 x 800 mm
Spindle speed Belt type 10000 rpm
(12000 opt.)		 Belt type 6000 rpm
(8000 opt.)		 Belt type 10000 rpm
(12000 opt.)		 Belt type 6000 rpm
(8000 opt.)
Spindle taper (Tool shank) BT-40 BT-50 BT-40 BT-50
(CAT / DIN / HSK / BBT opt.)
Max. loading capacity 1000 kg (Max. feed rate 36 m/min) 1500 kg (Max. feed rate 30 m/min)
2000 kg (Max. feed rate 20 m/min) 2500 kg (Max. feed rate 20 m/min)
X/Y/Z Axis rapid feed rate 36 / 36 / 30 m/min 30 / 30 / 30 m/min
X/Y/Z Axis cutting feed rate 18 / 18 / 15 m/min
X/Y/Z Axis linear guide 65 / 65-55 / 65 mm
X/Y/Z Axis ballscrew 50 / 50 / 50 mm 63 / 50 / 50 mm
Spindle motor (Mitsubishi) 11 / 15 kW 15 / 18.5 kW 11 / 15 kW 15 / 18.5 kW
X/Y/Z Axis servo motor (Mitsubishi) 4.5 / 4.5 / 7.0 kW
X/Y/Z Axis positioning ±0.005 mm
X/Y/Z Axis repeatability ±0.003 mm
ATC type / Magazine No.) ARM 24T
28T (opt.) 30T (opt.) 28T (opt.) 30T (opt.)
Tool change time 2.3 5.0 2.3 5.0
Machine dimension 4200 x 3335 x 3500 mm 5200 x 3335 x 3500 mm
Machine weight 11500 kg 14500 kg
CNC Control M80A / 0i-MF / 828D / TNC620
V Standard VD Standard
Belt type spindle speed 10000 rpm Belt type spindle speed 6000 rpm
Spindle oil cooler Spindle oil cooler
Fully enclosure guard
3 Axes telescopic cover
Air blast through spindle
Spindle air sealing
Cutting coolant system
Cutting air blast system
Air gun and water gun
Operation status lamp and working lamp
M30 power off
MPG handwheel
RS232 interface
Rigid tapping
Automatic lubrication system
Heat exchanger for electrical cabinet
Tool box with tools and leveling bolts & pads
Chip flushing system
Operation manual
>
